Digital input/output module OB-216

Code of product:
NTOV216IO
In stock
€110
5 years: product warranties
The device has been tested for operability
Quality confirmed by EU certificates

More Information

Enclosure 1 DIN (18 mm)
Installation method Into a panel (DIN rail)
Communication interfaces RS-485
Brand Novatek
Rated operating voltage 12 DC, 24 DC
Sensor inputs, pcs 1
Indication Indicators, Web interface
Available delivery methods: Pickup from the store, Nova Poshta.
Payment methods: Bank transfer, Cash on delivery.
Technical documentation General description of the equipment, instructions, etc.
Software

Detail product Description

OB-216 can be used as:

  • remote DC meter (0 - 10 V).
  • remote DC meter (0 - 20 mA).
  • remote temperature meter with the ability to connect sensors NTC (10KB), PTC 1000, PT 1000 or digital temperature sensor D18B20, DHT21, DHT22, AM2301.
  • pulse counter with saving the result in memory.
  • monitoring of the state (closed/open) of the contact at the input of the "dry contact" type.

OB-216 provides:

  • control of the load on the output analog signal (0 - 10 V, 0 - 20 mA), depending on the received input signal from the connected sensor.

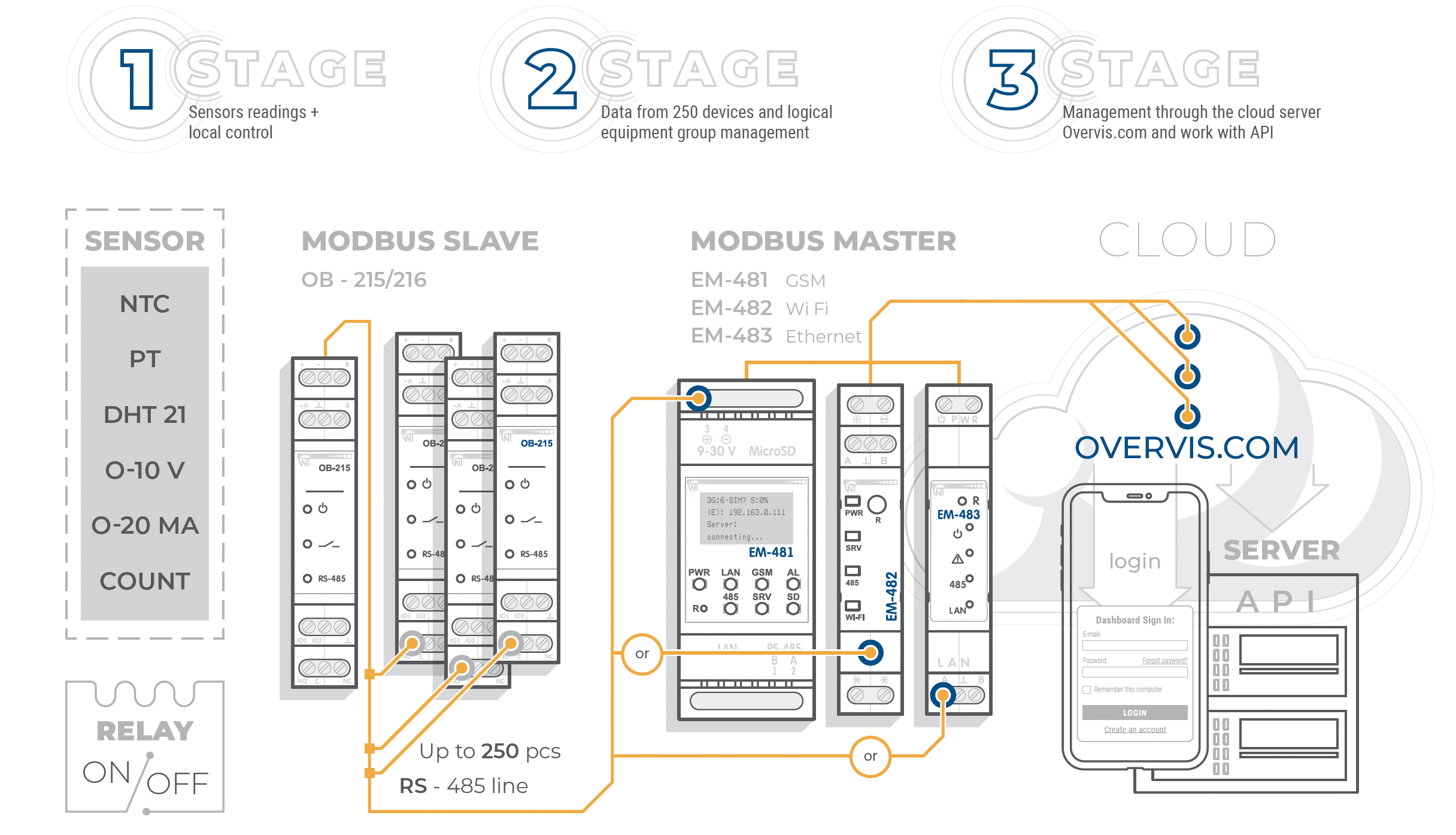

  • RS-485 or USB interfaces provide control of connected devices and reading sensor readings via the ModBus protocol.

Use cases:

  • Control of the frequency converter (4-20mA) by the temperature sensor.
  • Control of three-way valve (0-10) by temperature sensor.
  • Conversion of 0-10 V signal to 4-20 mA and vice versa.
