| Enclosure | 2 DIN (36 mm) |
|---|---|
| Max. measuring power | 11 кВт |
| Measuring current | 63 А |
| Max. switching current | 40 A |
| Number of phases | 1 |
| Installation method | Into a panel (DIN rail) |
| Brand | Novatek |
| Rated operating voltage | 230/240 АC |
| Max. load current | 40 А |
| Max. load power | 9 kW |
| Controlled parameters | Voltage, Current, Power |
| Additional features | Temperature protection , Voltage protection, Fault log |
| Operating method | Knobs (regulators) |
| Indication | Display |
Available delivery methods: Pickup from the store, Nova Poshta.

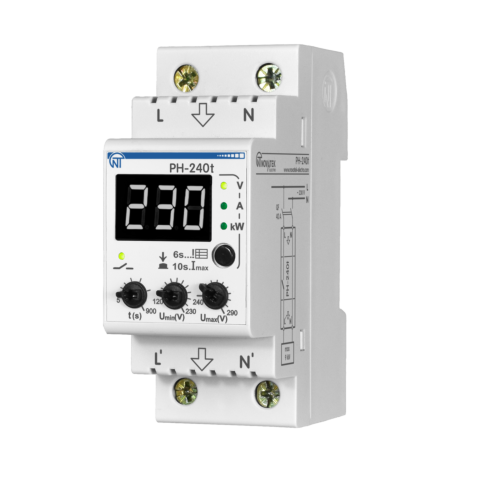

Payment methods: Bank transfer, Cash on delivery. The PH-240t voltage relay is designed to protect household and industrial electrical equipment (such as refrigerators, air conditioners, washing machines, televisions, video and audio equipment, etc.) from unacceptable voltage fluctuations in the power network and the consequences of a neutral (zero) break.
The device is rated for a load current of up to 40 A.
The PH-240t displays the actual voltage in the power network and the status of the output contacts (load status).
The PH-240t is equipped with overheat protection due to excessive nominal load current.
It measures and displays the current consumed by the load, as well as active and reactive power. It disconnects the load when preset current and power thresholds are exceeded.
The PH-240t stores information about the last five faults in non-volatile memory.
The PH-240t can function as:
The PH-240t is powered by the circuit supplying the load.
