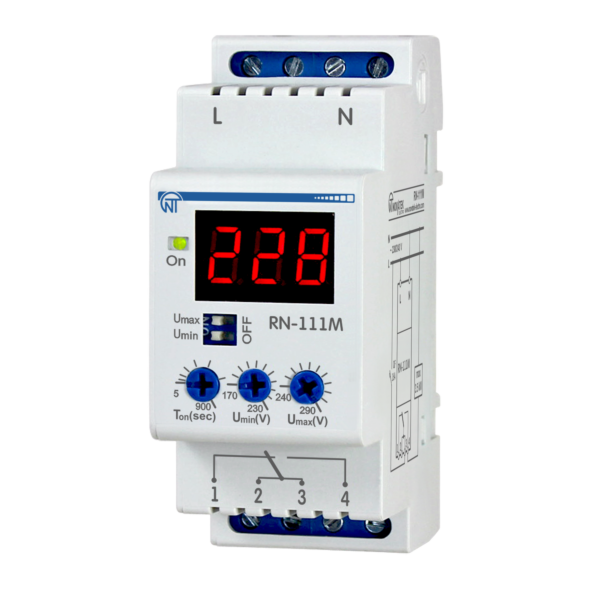

Single phase voltage protection relay RN-111M

Code of product:
NTRN111M0
In stock
€32
5 years: product warranties
The device has been tested for operability
Quality confirmed by EU certificates

More Information

Enclosure 2 DIN (36 mm)
Installation method Into a panel (DIN rail)
Brand Novatek
Rated operating voltage 230/240 АC
Max. load current 16 А
Max. load power 3.6 kW
Controlled parameters Voltage
Additional features Operation with magnetic starter (contactor)
Operating method Knobs (regulators)
Indication Display
Available delivery methods: Pickup from the store, Nova Poshta.
Payment methods: Bank transfer, Cash on delivery.
Technical documentation General description of the equipment, instructions, etc.

Detail product Description

RN-111M voltage relay is designed to disconnect household and industrial devices with single-phase loads of any power when there are unacceptable voltage fluctuations in the network, with subsequent automatic reconnection after the network parameters are restored:

  • for load power up to 3.5 kW (up to 16 A), disconnection occurs directly via the relay's output contacts, which are included in the power supply circuit of the load.
  • for power exceeding 3.5 kW (16 A), disconnection is carried out via a magnetic starter (MS) of appropriate power, with the relay's output contacts inserted in the interruption circuit of the starter's coil.

RN-111M can operate in four independent modes:

  • voltage relay.
  • minimum voltage relay.
  • maximum voltage relay.
  • time delay relay for switching on.

RN-111M displays the actual input voltage and the status of the output relay.
