Heating control unit TR-102
Code of product:
NTTR10200
In stock
More Information
| Enclosure | 9 DIN (162 mm) |
|---|---|
| Installation method | Into a panel (DIN rail) |
| Brand | Novatek |
| Number of temperature channels, pcs | 4 |
| Indication | Display |
| Operating method | Buttons |
Available delivery methods: Pickup from the store, Nova Poshta.
Payment methods: Bank transfer, Cash on delivery. Detail product Description

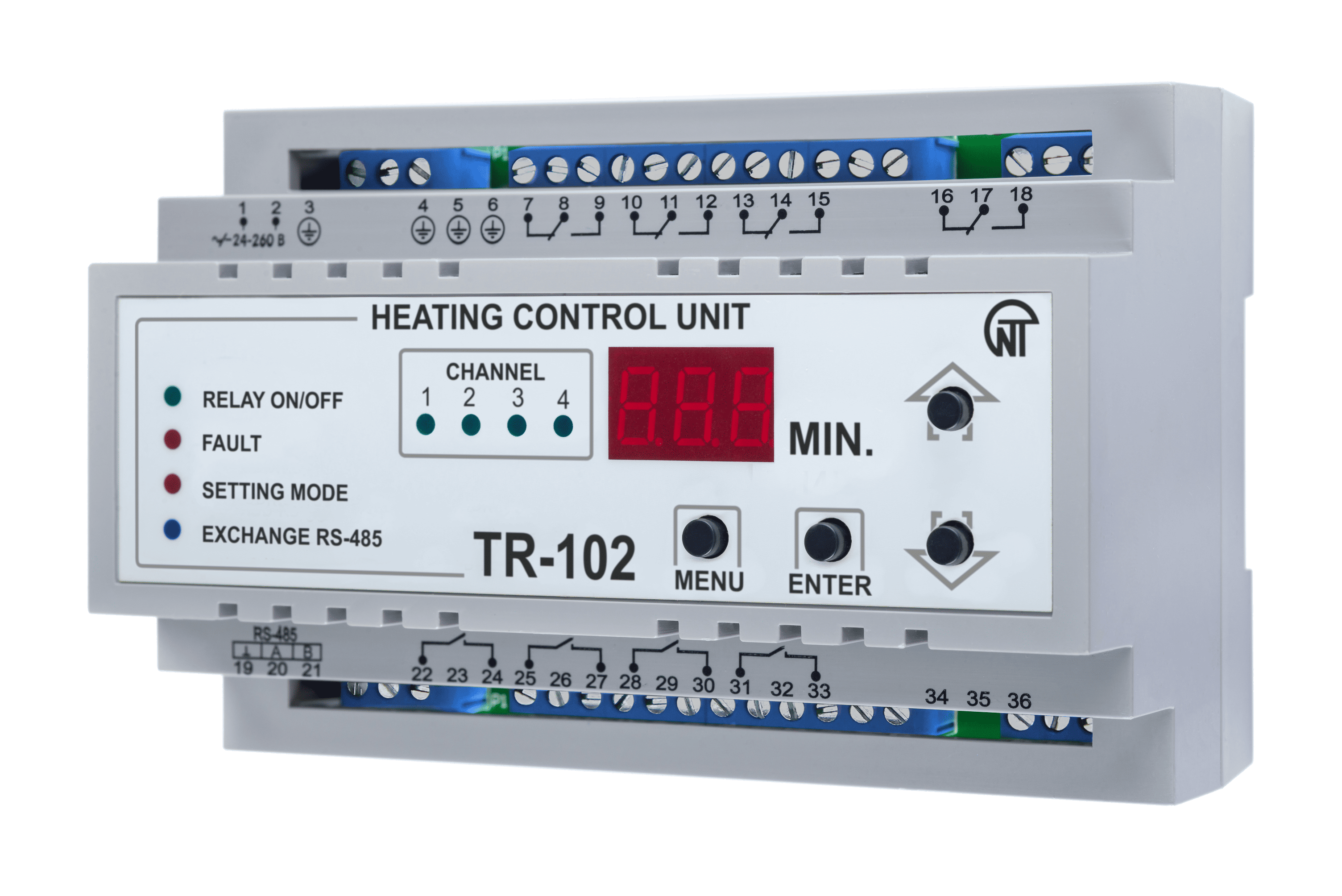

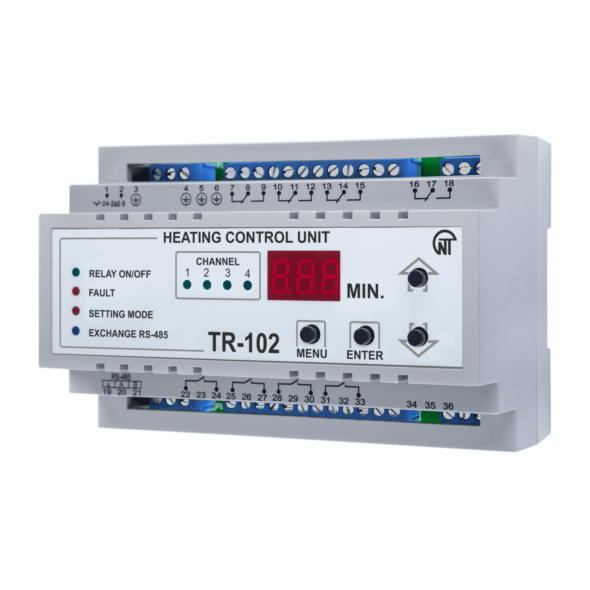

The TR-102 heating control unit is designed to maintain the temperature in four zones using thermostat contacts (bimetallic sensor).
Temperature maintenance occurs in cyclic mode with indication of the current control zone.
The device allows you to perform the following functions:
- Temperature maintenance in four thermal zones according to the cyclic scheme
- blocking the control of uncontrolled areas
- display of the current controlled area and its control time on the built-in LED digital indicator
- transmit controlled area data to the computer using the standard Modbus RTU protocol
- programming with buttons on the front panel and through the PC
- saving settings when power is turned off
- protection of settings from unauthorized changes
The TR-102 has universal power and can use any voltage from 24 to 260V, regardless of polarity.
As sensors, the TR-102 uses a bimetallic thermostat sensor (the logic of operation is set by the user during programming).
