| Enclosure | 9 DIN (162 mm) |
|---|---|
| Installation method | Into a panel (DIN rail) |
| Brand | Novatek |
| Number of controlled three-phase inputs | 1 |
| Rated operating voltage | 230/240 АC |
| Max. load current | 30 А |
| Max. load power | 6,6 kW |
| Additional features | Operation with magnetic starter (contactor) |
| Types of protection | Maximum/Minimum voltage |
| Operating method | Knobs (regulators) |
| Indication | Display |
Available delivery methods: Pickup from the store, Nova Poshta.

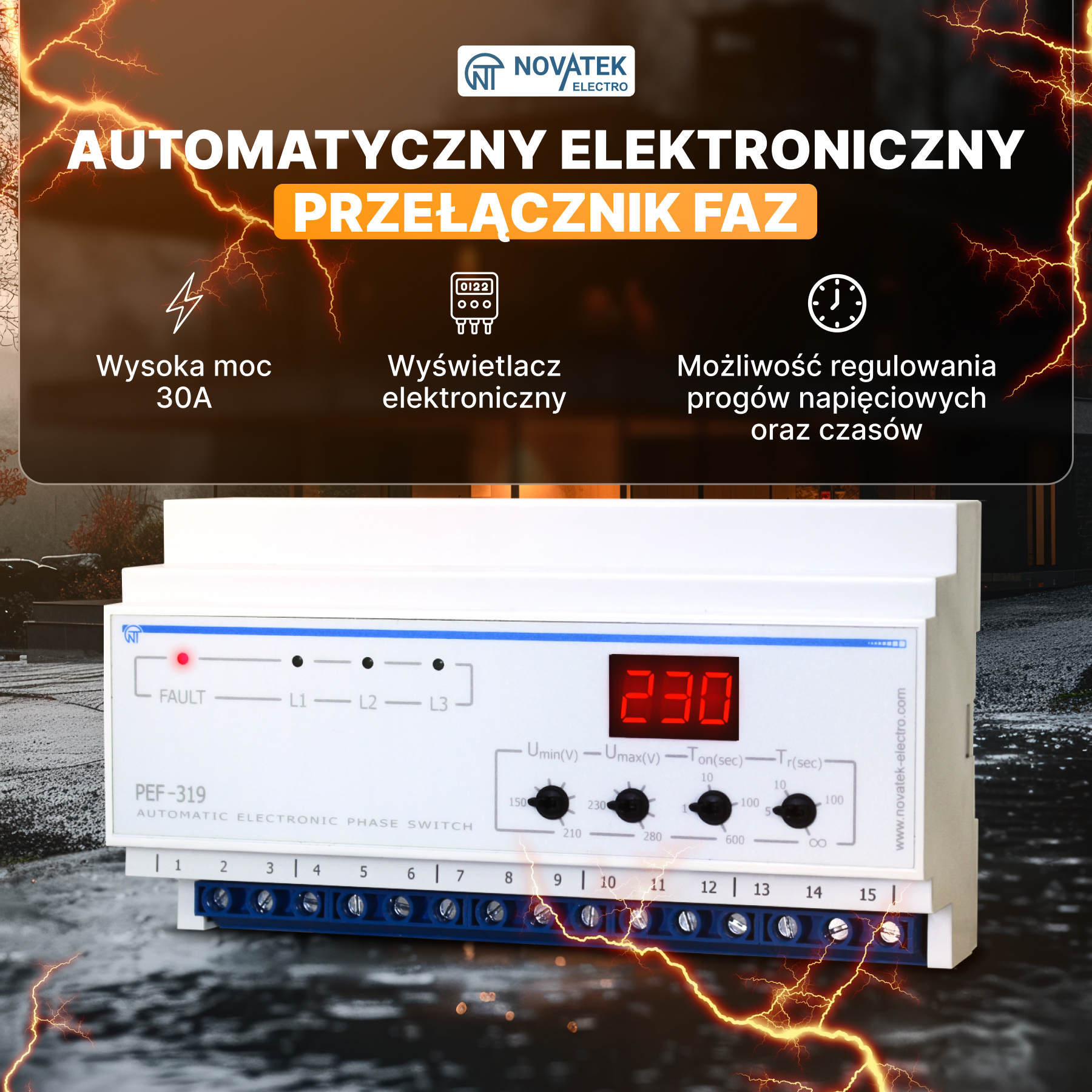

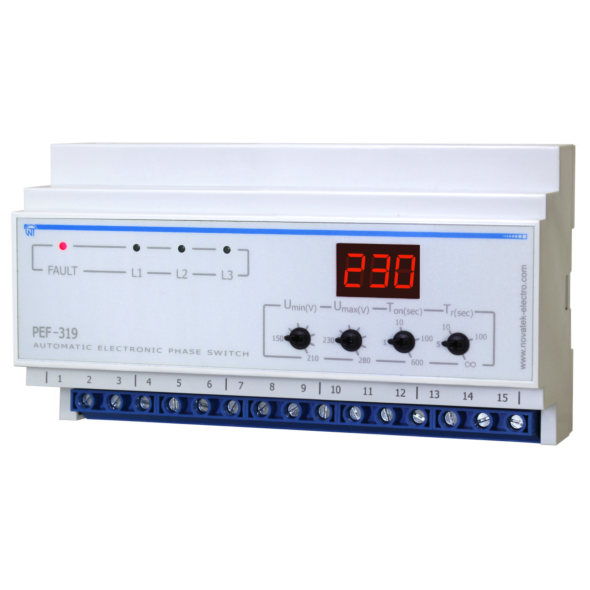

Payment methods: Bank transfer, Cash on delivery. Universal Automatic-Electronic Phase Switch PEF-319 is designed to supply industrial and household single-phase loads (230/240V, 50Hz) from a three-phase four-wire network (3x400V + N).
It ensures uninterrupted power supply for highly critical single-phase consumers and protects them from unacceptable voltage fluctuations in the network.
Depending on the availability and quality of the voltage on the phases, PEF-319 automatically selects the most optimal phase based on user-defined settings and connects the single-phase load of any capacity to it:
