| Installation method | Into a panel (DIN rail) |
|---|---|
| Brand | Novatek |
| Dimensions, mm | 1 DIN (18 mm) |
| Rated operating voltage, V | 220/240 АC |
| Maximum load current, A | 16 А |
| Maximum load power, kW | 3,6 |
| Additional features | Operation with magnetic starter (contactor) |
| Controlled parameters | Voltage |
| Current overload monitoring | No |
| Operating method | Buttons |
| Indication | Yes |
Available delivery methods: Pickup from the store, Nova Poshta.

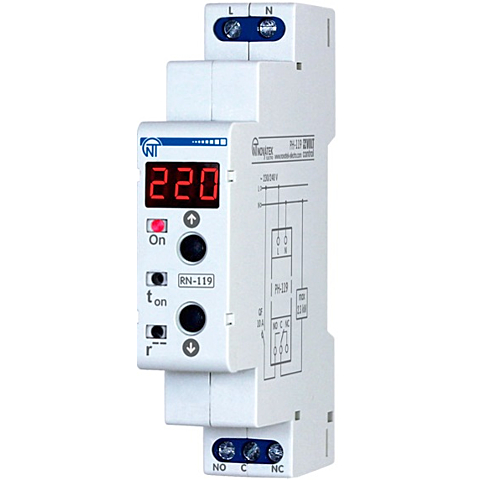

Payment methods: Bank transfer, Cash on delivery. RN-119 voltage relay is designed to disconnect household and industrial single-phase loads of any power in the event of unacceptable voltage fluctuations in the network, with subsequent automatic reconnection after the network parameters are restored.
For loads up to 3.6 kW (current up to 16 A), disconnection is performed directly by the device, with its output contacts included in the interruption of the load's power supply.
For higher power loads, disconnection is performed through a magnetic starter of appropriate power (MS is not included in the supply package).
RN-119 voltage relay records the maximum and minimum voltage values from the moment power is supplied to the device or from the last reset of the stored values.
RN-119 voltage relay displays the actual input voltage and the status of the relay's output contacts.
Schemat podłączenia:
